AIG CUT40R PLASMA CUTTER / PLASMA CUTTING MACHINE

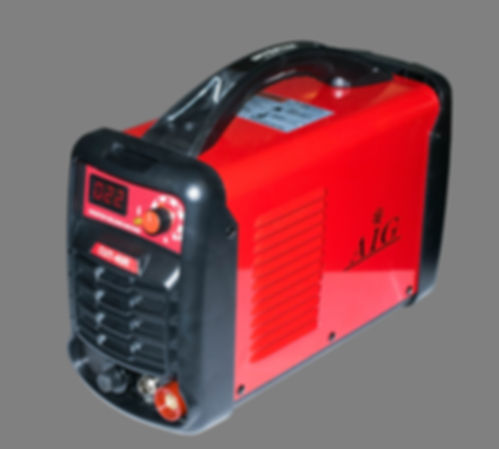

AIG CUT40R PLASMA CUTTING MACHINE



The AIG CUT40R Plasma Cutter is a new generation, plasma cutting machine produced using the latest in IGBT inverter technology. Designed with "user-friendliness" in mind, the machine is light (6.5kg) and features a bright, easy to read display with a single dial for control.



The AIG CUT40R Plasma Cutter features a seel body construction with high strength plastics for the front and rear panels. With the new design, we were able to shed 20% off of the weight which allowed us to incorporate new features such as High Frequency (HF) Touch Start, a Post-Flow feature to cool the torch down once cutting has stopped and a larger cooling fan inside the machine for better cooling to allow for higher duty cycles.



The AIG CUT40R creates a high temperature plasma stream making it easy and effortles at cutting all electrically conductive materials including steel, cast Iron, stainless steel, copper, aluminium brass etc...





Technical Data



  • Duty Cycle @40°c -  60% @ 40 Amps
  • Output Current Range - 15A - 40A
  • Rated Power (KVA) -  5.6
  • POST-FLOW (STATIC) - Yes
  • HF Start - Yes
  • Cutting Thickness - Clean (mm) -  10
  • Cutting Thickness - Severance (mm) -  13
  • Single Phase - Yes
  • Plug Type  -  10AMP
  • Protection Class  -  IP21S
  • Insulation Class  -  F
  • Over Current Protection - Yes
  • Over Heat Protection - Yes
  • Dimensions (LxWxH) - 400mmx160mmx250mm
  • Weight  -  6.5Kg
  • Warranty  - 1 year





Package Contents



  • AIG CUT40R Plasma Cutting Machine
  • Single Power Cable Cutting Torch (PT-31) - 5M
  • Euro Style (Dinse) Earth Leed - 2.5M
  • Fittings x2

  • Clamps x4

  • Shoulder Strap

  • Pressure Reducer (Regulator)

  • Basic Welding Helmet
  • Brush





FREE DELIVERY AUSTRALIA WIDE!!!



IF OUR ASKING PRICE IS TOO HIGH, TRY US! MAKE US AN OFFER!

    AU$399.99 Regular Price
    AU$349.99Sale Price
