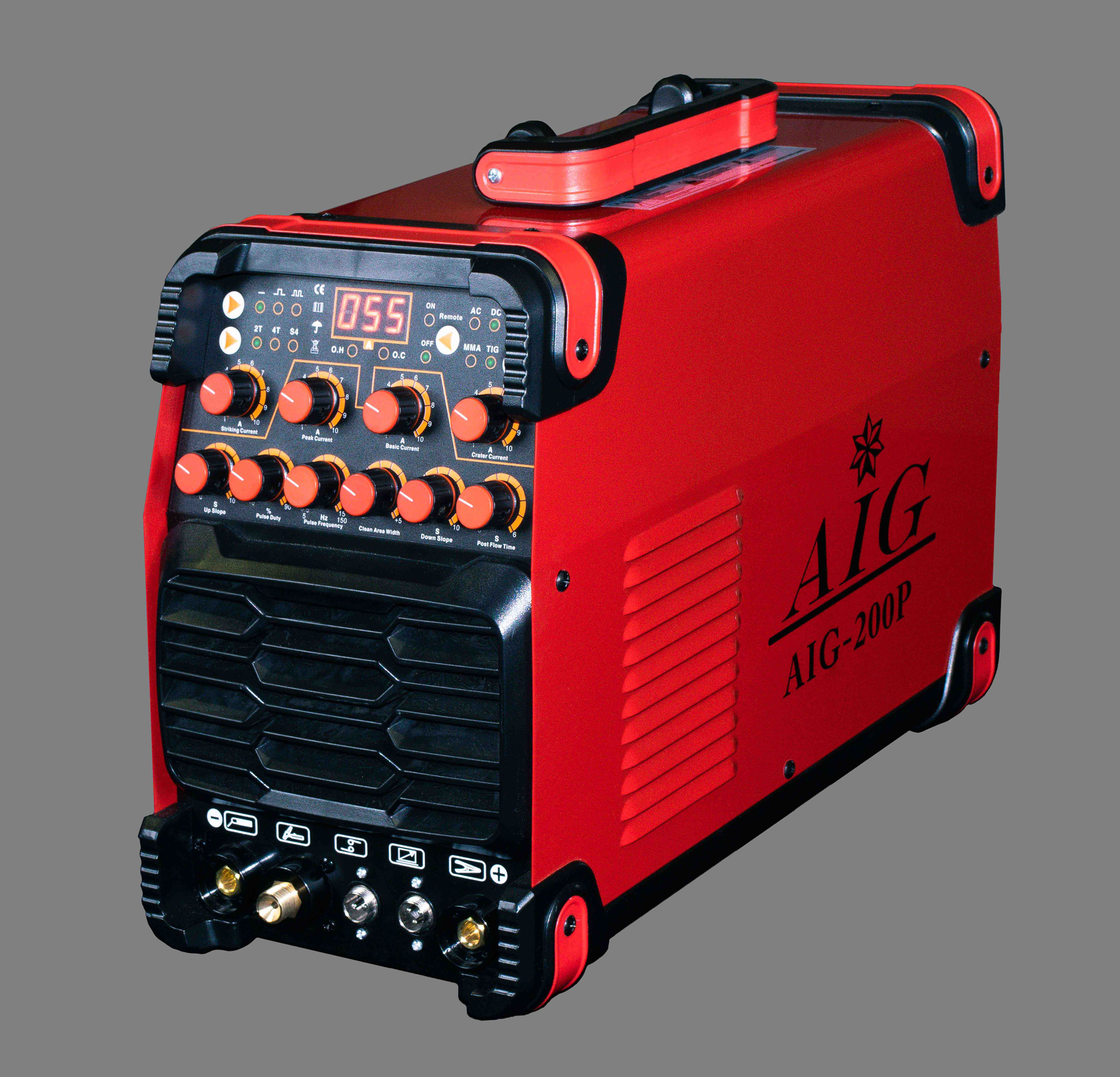

AIG TIG 200P AC/DC PULSE TIG WELDING MACHINE

AIG TIG 200P AC DC PULSE TIG WELDING MACHINE

AIG TIG 200P AC/DC PULSE TIG DIGITAL INVERTER MMA AC DC TIG WELDING MACHINE





The AIG TIG200P ACDC PULSE TIG is a 200 AMP, PULSE TIG and ARC, new generation MMA welding machine produced using the latest in PULSE and IGBT inverter technology. The AIG TIG200P Pulse TIG is designed to be easy to use, light-weight and featuring industrial grade quality at a unrivaled price point. This machine is the more feature rich successor to our AIG TIG200 AC/DC TIG WELDER

which with thousands of units sold, it speaks for its self.



The body is made from the same steel, high strength plastics and now rubberised corners and feet to ensure the machine is never directly on the ground and has grip on uneven surfaces. We have now introduced a folding handle to make the machine smaller but fit in a case where we can still use the same larger, better quality components. The machine features a high speed fan that is on at all times to ensure that the machine takes longer to start getting hot allowing for a much higher duty cylce; 60% @40c.



The AIG TIG200P PULSE TIG while geared more towards the experienced welder, is also perfect for the begginer. We designed the machine to have a digital readout, stepless parameter control and along with the "SQUARE WAVE" output frequencie, anyone can produce a beautiful TIG weld due to a more stable and controllable arc. The PULSE feature is optional (off/slow/fast) which alows begginers to leave it off, resulting in the user only needing to adjust afew knobs to get beautiful welds. The more advanced user(s) can chose between slow and fast which allows you to control and use all the feautres the machine has to offer.



The TIG torch, like our other TIG is a single-power-cable design. This means that the power is run through the gas hose which in return means, a less bulky hose which is more flexible and lighter. This removes alot of the fatigue on your arms/wrists which happens with long periods of welding.





Technical Data



Duty Cycle TIG @ 40°c - 60% @ 200 Amps

Duty Cycle MMA @ 40°c - 60% @ 200 Amps

Output Current Range TIG (DC) - 10A - 200A

Output Current Range TIG (AC) - 10A - 200A

Output Current Range MMA (STICK) - 30A - 200A

Max Input Current - 28A @ Rated Output (or 7.5KVA)

AC/DC MMA - Yes

AC BALANCE - 20% - 80% EN

Peak Current - Yes

Basic Current - Yes

Pulse 3 Settings (OFF/SLOW/FAST) - Yes

Pulse Frequency SLOW - 0.5hz - 15hz

Pulse Frequency FAST - 5hz - 150hz

Pluse Duty % (Pulse Width) - 10% - 90%

UP SLOPE - 0-10 Sec

DOWN SLOPE - 0-10 Sec

POST-FLOW - 0-6 Sec

2T/4T/S4 - Yes

Striking Current Control Knob - Yes

Crater Current Control Knob - Yes

HF Start - Yes

Remote Function - Yes

Single Phase - Yes

Plug Type - 15AMP

Protection Class - IP21S

Insulation Class - F

Over Current Protection - Yes

Over Heat Protection - Yes

Dimensions (LxWxH) - 460mmx225mmx370mm

Weight - 12.4Kg

Warranty - 1 year







Package Contents



AIG TIG200P AC/DC PULSE Welding Machine

Single Power Cable 26V Style Tig Torch - 3M

Euro Style (Dinse) Arc Torch - 2.5M

Euro Style (Dinse) Earth Leed - 2.5M

Collet Body



Collet - x 3 (2mm,2.4mm,3.2mm)



Alumina Cups - x 3 (5,6,7)



Back caps - x 2 (standard) and (small for tight spaces)



Bobbin Flow Regulator



Basic Welding Helmet

Brush







USER MANUAL :-





AIG TIG200P User Manual









Click OR Copy and paste the above link for the online manual.





FREE SHIPPING AUSTRALIA WIDE!



IF OUR ASKING PRICE IS TOO HIGH, TRY US! MAKE US AN OFFER!

    AU$849.99 Regular Price
    AU$749.99Sale Price
